AMR Robot Industrial Grade Quality

AMR Robot Industrial Grade Quality

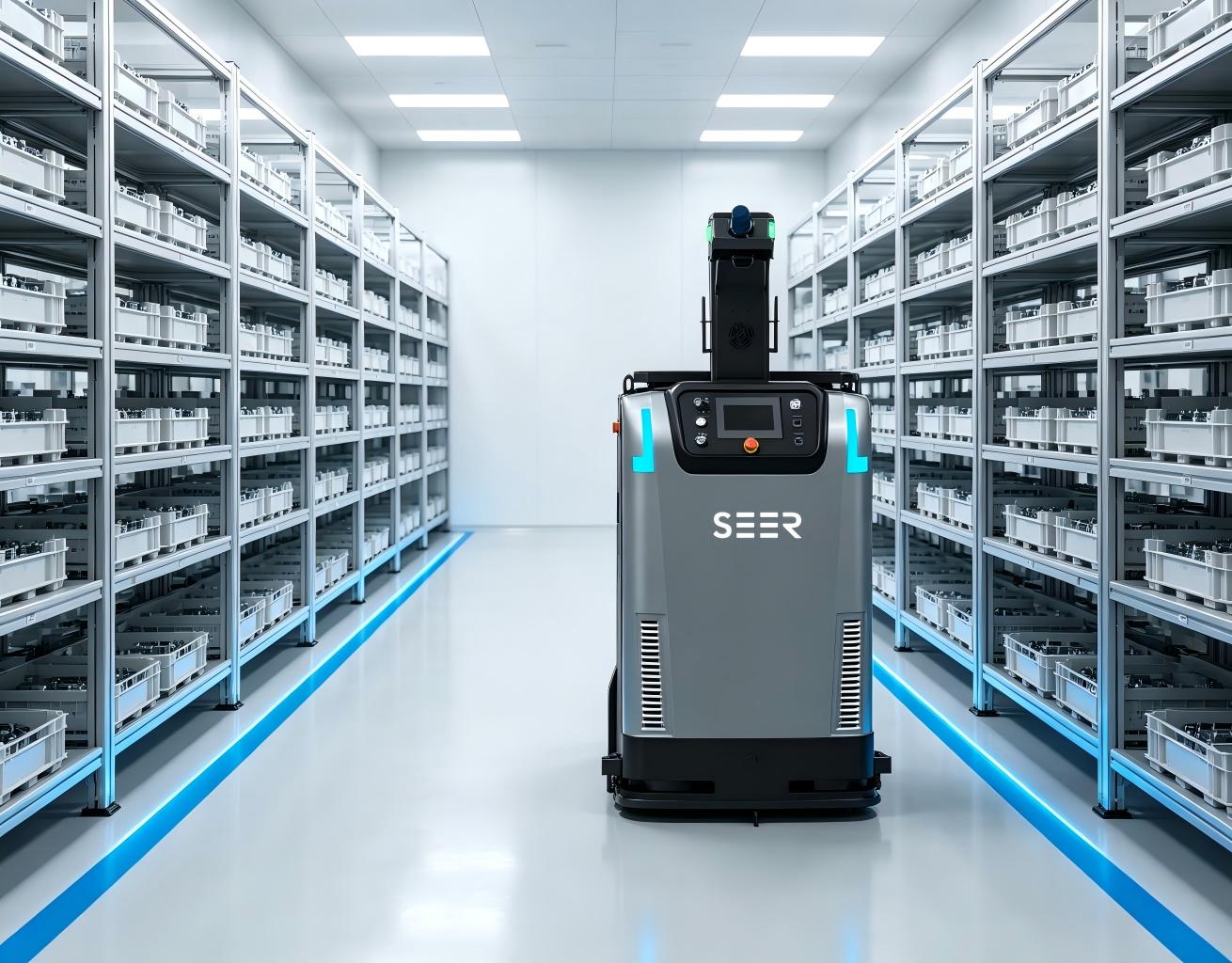

AMR Robot

The SEER Robotics AMR robot is built for narrow-track stacking height, with omnidirectional driving and panoramic obstacle avoidance capabilities, greatly improving the handling efficiency of high-density warehouses. SEER Robotics is the source manufacturer, with independent research and development of core technology and mature production lines, eliminating middlemen to directly connect with customers to provide you with competitive ex-factory prices and fast delivery.

The AMR robot is mainly used in high-density storage, narrow-channel stacking height, narrow-channel omnidirectional side handling, high-rise shelf pallet precise docking, and dense warehouse pallet automatic warehousing.

Navigation Type
Laser Navigation
Rated load
1000 kg
Running speed
1.5 m/s

Features of AMR Robot

Omnidirectional movement and narrow passage:
With the omni-directional steering driving function, it can realize lateral translation in a narrow channel of 1.8 m and flexibly steer in a narrow space of 1.9 m, greatly improving the traffic capacity and handling efficiency in narrow areas.
High-density space storage optimization:
Designed for high-density storage scenarios, it can maximize the use of extremely narrow channels and narrow spaces, effectively improving the storage density of the warehouse and the overall operation flow efficiency.
3D panoramic obstacle avoidance protection:
Equipped with three-dimensional navigation LiDAR and a distance sensor, combined with a front-end touch-edge anti-collision strip and an 3D obstacle avoidance camera module, all-round safety protection is realized to ensure the safety of operation in a man-machine coexistence environment.
multi-trajectory flexible path planning:
It supports a variety of complex motion trajectories, such as oblique, arc, side, detour, and Bezier curves, and can flexibly plan the best driving path according to the working environment.
Efficient charging and long life:
Equipped with a lithium iron phosphate battery pack, support continuous long-term high-intensity operation with a one-hour fast charging function, effectively reducing the downtime waiting time.
Depth selection and multi-dimensional customization:
It supports diversified customization such as fork width, body height, body color, and enterprise logo, and can accurately match the personalized business scenario requirements of different enterprises.
AMR Robot Detailed Structured Parameter Table
Parameter Category Parameter Name Value & Specification
Basic Parameters Product Model SOS-1000
Basic Parameters Navigation Method Laser Navigation
Basic Parameters Pallet Type Open Pallet
Basic Parameters Rated Load Capacity 1000kg
Basic Parameters Load Center Distance 600mm
Basic Parameters Total Weight (including battery) 800kg
Dimensions Standard Lifting Height 1600mm
Dimensions Vehicle Overall Dimensions 1742 × 1018 × 2001 mm
Dimensions Fork Dimensions 1220 × 210 × 60 mm
Dimensions Min. Turning Radius 1445 mm
Performance Specifications Travel Speed 1.5 m/s
Performance Specifications Positioning Accuracy ±10 mm
Performance Specifications Orientation/Angle Accuracy ±1°
Battery Specifications Battery Type 51.2V/106Ah Lithium Iron Phosphate (LiFePO4)
Battery Specifications Comprehensive Operating Time 12 h
Battery Specifications Charging Time 1 h
Safety Features Protection Configuration 3D LiDAR and Anti-collision Bumper

AMR Robot Comparison Point

Compared with traditional forklift equipment with fixed track, SEER Robotics AMR robot has the advantages of omnidirectional side travel and extremely narrow channel handling. The robot can quickly build a map without destroying the warehouse floor, realize efficient transportation in narrow roadways, help the factory save the cost of warehouse renovation and significantly shorten the online time. compared with similar one-way mobile robots, SEER Robotics AMR robot is equipped with multi-radar perception and bezier curve path planning algorithm, which has stronger traffic ability and obstacle avoidance safety when facing narrow space steering and complex dynamic obstacles.

Lorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsumLorem ipsum Lorem ipsumLorem ipsum
Low utilization of warehouse space hinders capacity improvement:
SEER Robotics AMR robot supports omnidirectional translation and can operate efficiently in 1.8m extremely narrow channels, helping enterprises to compress channel width and greatly improving warehouse storage density.
There are huge safety risks in the mixed operation environment of people and vehicles:
SEER Robotics AMR robot integrates three-dimensional LiDAR and anti-collision strip to realize all-round three-dimensional obstacle avoidance and immediate stop protection, and completely eliminate potential safety hazards of narrow-track mixed traffic.
Business changes result in high cost of fixed handling line retrofit:
SEER Robotics AMR robot adopts natural trackless navigation and multi-track planning algorithm, which makes map adjustment convenient and helps enterprises to seamlessly adapt to the change of transportation demand.

AMR Robot Instructions

Environmental maps and regional delineation:
Control SEER Robotics AMR robot cruise to build a site map and calibrate the site.
01
Path Planning and Site Setup:
Set the handling line, charging position and obstacle avoidance speed limit area in the management system.
02
Task distribution and omni-directional handling:
After the system issues instructions, the robot automatically plans the path and accurately completes the pallet stack height.
03
Routine maintenance and automatic charging:
LiDAR lenses are cleaned regularly, and the robot will automatically return to charge when the battery is low.
04

AMR Robot For People

Auto parts manufacturing enterprise operation decision maker：

It is suitable for material and pallet handling in narrow channels inside the workshop, realizing efficient material allocation across processes and helping the workshop to improve the overall storage and circulation efficiency.

3C electronic and semiconductor plant logistics director：

It is suitable for the production workshop with high-density storage and limited access, and completes the high-precision automatic stacking and warehousing of raw materials and pallets in a limited space.

New energy lithium battery production factory automation supervisor：

Suitable for high-density storage scenarios of raw material warehouses and finished product warehouses, to meet continuous high-height handling operations under severe working conditions, and to ensure stable operation around the clock.

Third Party Warehouse Logistics and Supply Chain Operations Manager：

It is suitable for e-commerce sorting and intensive storage centers, using narrow-channel omni-directional lateral capacity to improve storage capacity utilization and realize automatic rapid deployment and expansion.

Certificates And Factories

证书大图

As the world’s leading controller manufacturer, SEER Robotics has independent intellectual property rights of SRC series controllers and production lines. It is the real source manufacturer, providing you with highly competitive ex-factory prices and faster delivery speed. Products comply with international standards and have been deployed in many countries and regions around the world. Through standardized communication protocols, the stable operation and technical compatibility of the system in multinational plant projects are ensured.

证书小图

FAQ

Q1: Does SEER Robotics AMR robot need to transform the warehouse site when building maps?
No need. SEER Robotics AMR robot adopts laser navigation technology, does not need to lay magnetic strips or reflectors, and can directly build maps based on the inherent walls and shelves of the warehouse.
Q2: What are the traffic requirements for SEER Robotics AMR robot in narrow lanes?
The equipment has omnidirectional driving ability, can realize lateral translation in a narrow channel of 1.8m, and complete flexible steering and handling in a narrow space of 1.9m.
Q3: How to ensure the safety of the robot in the narrow channel?
The equipment is equipped with three-dimensional LiDAR, anti-collision strip and 3D obstacle avoidance camera module, which can identify low and three-dimensional obstacles in real time and stop when encountering obstacles, ensuring the safety of human-machine coexistence.
Q4: What customized services does SEER Robotics AMR robot support?
Support the personalized customization of fork width, body height, body painting color and enterprise logo, and accurately meet the special vehicle and scene requirements of different customers.
Q5: How does the robot's battery life and charging time perform?
The equipment is equipped with lithium iron phosphate battery, with a comprehensive endurance of up to 12h, and supports one hour fast charging and automatic charging, which can meet the needs of high-intensity continuous operation.
Q6: Can SEER Robotics AMR robot interface with enterprise management system?
Yes. Through the matching scheduling software, AMR robot can seamlessly connect the existing warehouse management system and production execution system of the enterprise to realize the automatic distribution of tasks.
